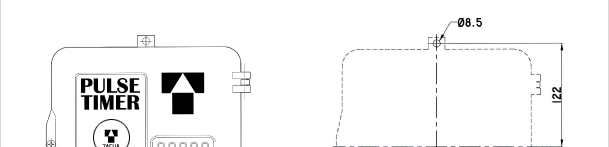

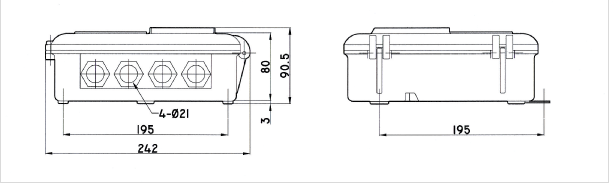

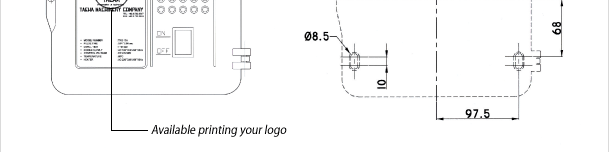

1. Aluminum Die-Casted Box

   As the PCB of TNE timer is located in the aluminum

   die-casted box, if facilitates the water-proofing and

   dust-proofing.



2. Economical design contains the essential functions

   only for the dust collector.



3. Exterior design

   It has exterior displays like LED lamp and main power

   switch.



Specification

TNE Timer

           Output Signal

                                  Electrical

           Feature

                                  Board only

           Control Type

                                  Analog

           Enclosure

                                  Aluminum Die-Casting NEMA 4

           Max. Output

                                  10p, 20p

           Pulse Time

                                  Volume register

           Dwell Time

                                  Volume register

           Power Supply

                                  AC85 ~ 240V / 50 ~ 60Hz

           Fuse

                                  2A

           Pressure

                                  -

           Operating

             Temperature

                                  320 ~ +60℃

                                  (If not freezing condition)

           Terminal Type

                                  1.25 4Y
