This pilot solenoid enclosure for remote control of the main

pulse valves(remote type only) is protected by an alumin-

um die-casted dust and water-proof enclosure.



The two-way plastic injected body with insert tab, and the

terminal screw on the coil facilitate easy installation and

easy maintenance.



The pilot valve enclosure can be made available with an

internally fitted heating device of 80 Watts, which allows automatic temperature control to avoid freezing

and malfunction at low temperature (down to -25¡É). This pilot solenoid enclosure saves considerable

installation costs. Compact design assures long life and minimal maintenance.



Specification

Description

           Watt Rating

          14.0 VA (Each coil)

           Weight (kg)

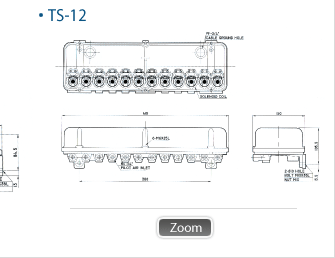

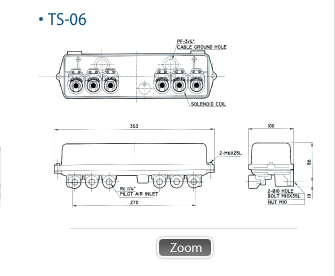

          2.2, 3.2, 4.9, 6.5 (TS - 04, 06, 10, 12)

           Coil Model

          PM - 60

           Valve Orifice

          1/4"

           Pressure

          0.05 ~ 9.8 kg/§²

           Temperature

          -20 ~ +110¡É (if not freezing condition)
