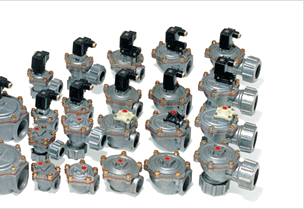

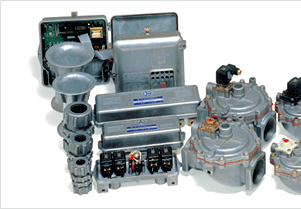

Aluminum die-casted valves are high flow diaphragm operated valves specially designe for air pulse

type dust collectors.



High flow, long life and its fast opening combine to offer a supperior design for the dust collector system

available for remote pilot valve operation with the solenoid enclosure or the integral solenoid pilot opera-

tion.



For the connection, We offer the screw, coupling and flange type valve. Viton diaphragms are offered for

the high temperature applications.



Model

Pipe Size

Connection

Cv Factor

Weight

TH-5820-B

3/4"

Screw

10.5

340g

TH-5820-C

3/4"

Coupling

10.5

555g

TH-4820-B

3/4"

Screw

10.5

695g

TH-4820-C

3/4"

Coupling

10.5

955g

TH-5825-B

1"

Screw

18.7

460g

TH-5825-C

1"

Coupling

18.7

865g

TH-4825-B

1"

Screw

18.7

855g

TH-4825-C

1"

Coupling

18.7

1290g

TH-5825-M

1"

Manifold

41

410g

TH-5830-B

1 1/4"

Screw

46.5

795g

TH-5430-B

1 1/4"

Screw

46.5

960g

TH-4830-B

1 1/4"

Screw

46.5

1140g

TH-4430-B

1 1/4"

Screw

46.5

1220g

TH-5430-M

1 1/4"

Manifold

58.05

720g

TH-4430-M

1 1/4"

Manifold

58.05

1090g

TH-5840-F

1 1/2"

Flange

39

920g

TH-4840-F

1 1/2"

Flange

39

1260g

TH-5840-B

1 1/2"

Screw

53.9

925g

TH-5840-C

1 1/2"

Coupling

53.9

1670g

TH-5440-B

1 1/2"

Screw

53.9

1040g

TH-5440-C

1 1/2"

Coupling

53.9

1770g

TH-4840-B

1 1/2"

Screw

53.9

1315g

TH-4840-C

1 1/2"

Coupling

53.9

2030g

TH-4440-B

1 1/2"

Screw

53.9

1395g

TH-4440-C

1 1/2"

Coupling

53.9

2110g

TH-5440-M

1 1/2"

Manifold

69.5

890g

TH-4440-M

1 1/2"

Manifold

69.5

1173g

TH-5850-F

2"

Flange

68.5

1705g

TH-5450-F

2"

Flange

68.5

1800g

TH-4850-F

2"

Flange

68.5

2065g

TH-4450-F

2"

Flange

68.5

2120g

TH-5450-B

2"

Screw

74.2

1895g

TH-4450-B

2"

Screw

74.2

2240g

TH-4450-M

2"

Manifold

82

1636g

TH-5450-M

2"

Manifold

823

1328g

TH-5460-B

2 1/2"

Screw

96

3315g

TH-5460-S

2 1/2"

Screw

110

4450g

TH-4460-B

2 1/2"

Screw

110

3475g

TH-4460-S

2 1/2"

Screw

110

4730g

TH-5475-B

3"

Screw

142

3505g

TH-4475-B

3"

Screw

142

3825g

TH-5475-M

3"

Manifold

170

3485g

TH-4475-M

3"

Manifold

170

3712g

TH-4490-M

3 1/2"

Manifold

218

4170g

TH-5490-M

3 1/2"

Manifold

218

3855g

TH-5400-M

4"

Manifold

245

5295g

TH-4400-M

4"

Manifold

245

5495g
